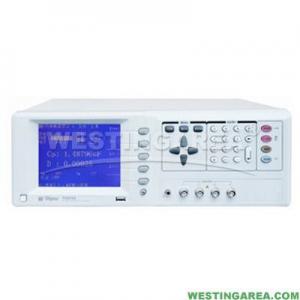

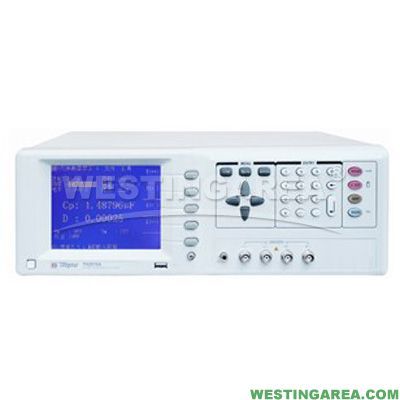

Precision LCR Meter

WESTINGAREA supplied TH2819A Precision LCR Meter have the excellent performance displayed as:
          With test frequency from 20Hz to 200kHz, frequency resolution of 10mHz, wide test signal level range from 5mV to 2V, measurement speed up to 32ms/time, TH2819A can be used to inspect electronic components, not only for measurement parameters TH2819 has, but DCR measurement. The meter has 1.5V/2V internal bias voltage, optional ±10V (±100mA) and 1A internal DC bias source and external inductance bias sources to inspect inductive components.
         With high speed, wide test range, and 6-digit resolution, TH2819A can be used in quality control on production line, incoming inspection and lab measurement.

Item：		Precision LCR Meter
Test Parameter：		|Z|,|Y|,C,L,X,B,R, G,D,Q,θ,DCR,Turn-Ratio,Phase
Test Frequency：		20Hz to 200KHz,Resolution：10mHz
Accuracy：		0.01%
Test Level Range：
Regual：		5mV to 2V
Turn-ratio：		5mV to 4V
resolution：		1mV
Accuracy：		5%
Output Impedance：		30 Ω and 100Ω selectable
Basic accuracy：		0.05%
Measuring time (≥1kHz)：
Fast：		32ms
Med：		90ms
Slow：		650ms
Equivalent Circuit：		Series and Parallel
Ranging Mode：		Auto and Hold
Trigger Mode：		Internal, Manual, External and Bus
Averaging Rate：		1-255
Correction Function：		Open, Short and Load
Internal DC bias：		source 0V,1.5V,2V
Accuracy：		1%
Comparator Function：		10 bins and bin counters
Memory：		20 groups of control settings can be saved
Interface：		RS232C,HANDLER(options),GPIB(options)
Operating Temperature And Humidity：		0-40℃ ≤90%RH
Power：		99V-121V,198-242V 47.5-63Hz
Power Consumption：		≤80VA
Dimensions(W*H*D)：		400*150*430mm
Weight：		Approx.9Kg

No Shipping Detail!

This item does not require any certification.

No Accessories!
