LCR Meter

Item#：W00001307

Brand：EHSY

Origin：China

*Welcome to contact us sales.lab@westingarea.com

Description Tech Specs Shipping Detail Certification Accessories

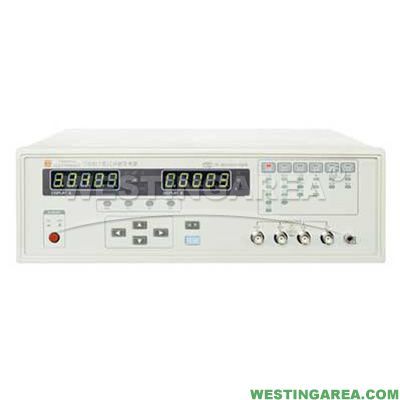

WESTINGAREA supplied TH2817 LCR Meter have the excellent performance displayed as:
     1. 6 selectable typical measurement frequencies, up to 100kHz
    2.Measurement speed up to 20times/second
     3.Direct, absolute deviation, relative deviation
     4.Test level monitor
     5.Sorting alarm control and alarm mode selection
     6.Set parameter lock function
     7.4-bin sorting and HANLDER interface

Item：		LCR Meter
Measurement Parameter：		L-Q,C-D,R-Q,\|Z\|-Q,\|Z\|-D
Basic Accuracy：		0.05%
Equivalent Circuit：		series,parallel
Mathematical Funtion：		absolute value deviation,Δ%
Range Mode：		auto,hold
Trigger Mode：		internal,manual and external
Measurement Speed：
Fast：		20
Medium：		5.1
Slow：		1.5(times/second)
Average Times：		1-99
Calibration Funtion：		Open/Short sweep correction
Measurement Tenminal：		5-terminal
Display Mode：		Direct,Δ,Δ%,V/I(voltage/current moniot)Display：Double 5-digit LED display
Signal Frequency：		100Hz,120Hz,1kHz,10kHz,40kHz,100kHz
Output Impedance：		Dependent on range
Test Level：		0.1Vrms,0.3Vrms,1Vrms
Comparator：		4-bin sorting,alarm volume selection,alarm state selction
Interface：		RS232C,Handler,Printer
Operating Temperature And Humidity：		0-40℃ ≤90%RH
Power：		198-242V 47.5-63Hz
Power Consumption：		≤20VA
*Dimensions(WHD)：*		350120425mm
Weight：		Approx.3.8Kg
