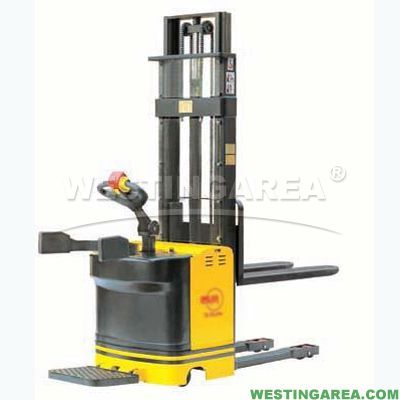

Full Electirc Stacker

Item#：W00001622

Brand：EHSY

Origin：China

*Welcome to contact us sales@westingarea.com

Description Tech Specs Shipping Detail Certification Accessories

WESTINGAREA supplied Full Electirc Stacker have the excellent performance displayed as:

Power driven (Self-propelled).
With the latest ergonomic design .
Exceptional maneuverable and load carrying performance, combined with effortless lift and travel.
Electro-magnetic braking by interruption of electric circuit. permanent stop when tiller is placed within 20°of vertical or in horizontal position.
MOSFET controller with electric throttle.

Item：		Full Electirc Stacker
Capacity(Q(kg))：		1000
Load centre distance(c(mm))：		500
Load distance,centre of drive axle to fork(x(mm))：		880
Wheelbase(y(mm))：		1400
Service weight (with battery)(kg)：		880
Tread,front(b10(mm))：		626
Tread,rear(b11(mm))：		410
Height,mast lowered(h1(mm))：		2087
Max. lift height(h3(mm))：		1600
Height,mast extended(h4(mm))：		2087
Lowered fork height(h13(mm))：		90
Overall length(l1(mm))：		1955
Overall width(b1/b2(mm))：		780
Fork dimensions(s/e/l(mm))：		60
Distance between fork-arms(b5(mm))：		580
Ground clearance,centre of wheelbase(m2(mm))：		21
Aisle width for pallets 1000x1200 crossways(Ast(mm))：		2551
Aisle width for pallets 800x1200 lengthways(Ast(mm))：		2493
Turning radius(Wa(mm))：		1730
Travel speed,laden/unladen(Km/h)：		4/5
Lift speed,laden/unladen(m/s)：		0.08/0.1
Lowering speed,laden/unladen(m/s)：		0.15/0.12
Gradeability,laden/unladen(%)：		6/10
Drive motor rating S2 60 min(kW)：		0.75
Lift motor rating at S3 15%(kW)：		2.2
Battery voltage,nominal capacity K5(V/Ah)：		200
Battery weight(kg)：		200
Battery dimensions l/w/h(mm)：		650x249x500

No Shipping Detail!

This item does not require any certification.

No Accessories!
