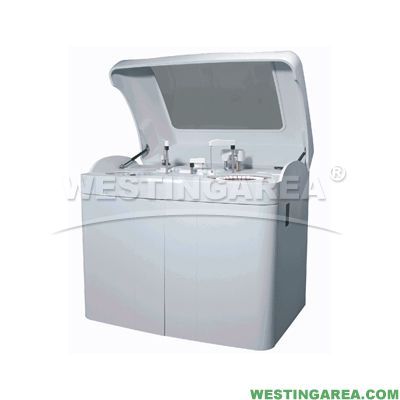

Auto Biochemistry Analyzer

Item#:W00002296

Brand:EHSY

Origin:China

Qty.   add to personal list

*Welcome to contact us sales@westingarea.com

Description Tech Specs Shipping Detail Certification Accessories

Westingarea supply high quality Auto Biochemistry Analyzer.

Specifications
  ·Assay methods: End Point, Kinetic, Fix time etc.
  ·Principle: Photoelectric Colorimetry
  ·Light Source: Halogen lamp 12V/20W
  ·Photometry range: 0~3Abs
  ·Resolution: 0.0001Abs
  ·Wavelength: 10 wavelengths optional (340nm~800nm)
  ·Throughput: 400 tests/hour
  ·Reagent tray: 60 reagent positions
  ·Sample tray: 75 sample positions
  ·Reaction tray: 120 reaction positions
  ·Sample volume: 2~100ul, with 0.1ul increment
  ·Reagent volume: R1:10~500ul, R2: 10~500ul, with 0.5ul increment
  ·Minimum reaction volume: 150ul
  ·Maximum reaction time: 10 minutes
  ·Water Consumption: 4L/hour under working status
  ·Clean unit: 8-step auto-washing system
  ·Calibration: Calibration reset, select best test point by reaction curve without second
      calibration
  ·Control rules: Westgard multi-rule, Cumulative sum check, Twin plot
  ·Temperature control: incubator 37±0.1℃
  ·Power supply: AC110/230(1±10%)V, 50/60Hz, 500VA
  ·Ambient: Operating temperature: 10~30℃
  Relative humidity: ≤85%
  Atmospheric pressure: 86~106kPa
Features
  ·24 hour non-stop water cycle cooling system to ensure reagent at 2-8℃
  ·Dual-unattached durable ceramic syringes to ensure accuracy & precision
  ·Collision protection in both vertical and horizontal directions, stop & alarm automatically
  once touching barrier, not affect former tests
  ·Automatic eligible cuvettes detection & selection
  ·Select best test point by reaction curve, create new factor automatically
  ·High accurate optical system
  ·Support LIS interface

G.W(kg):520
Carton size(mm)(L*H*M): 1340*900*1340
